Configuring beroNet VoIP Gateway

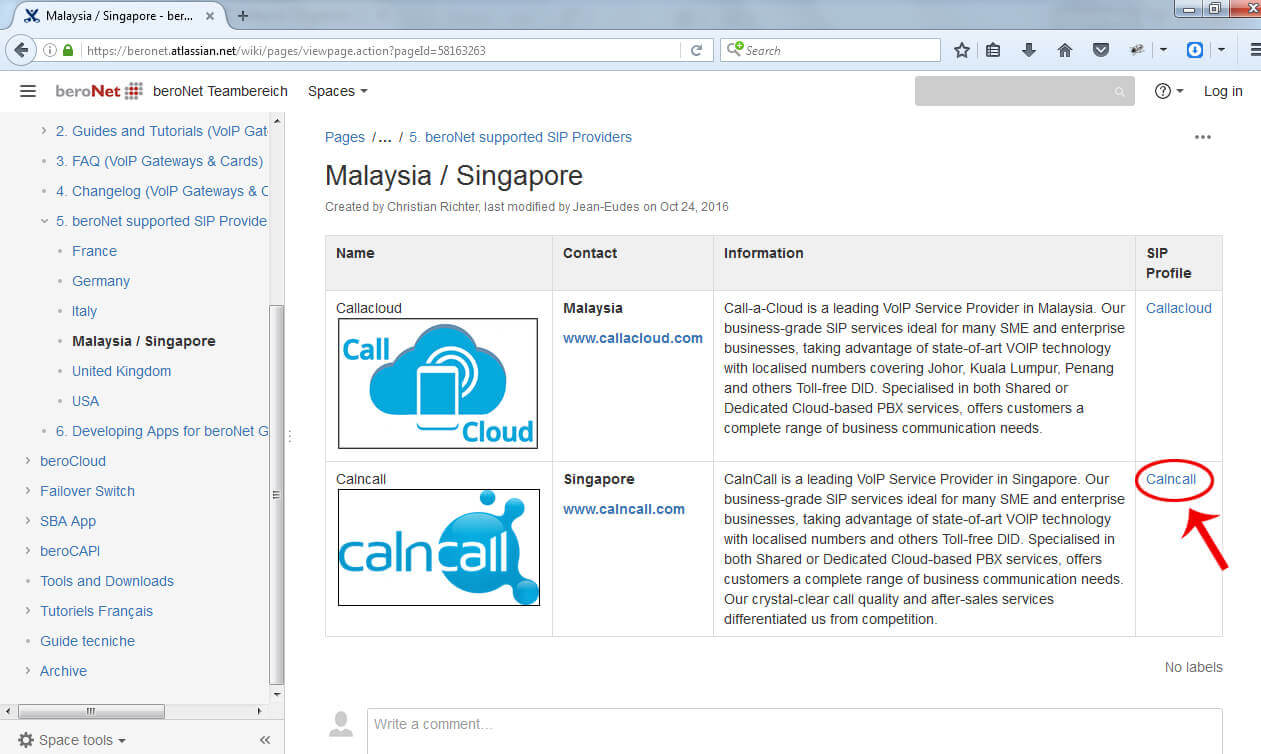

Step 1: Click below link to download Trunk.Us SIP profile:

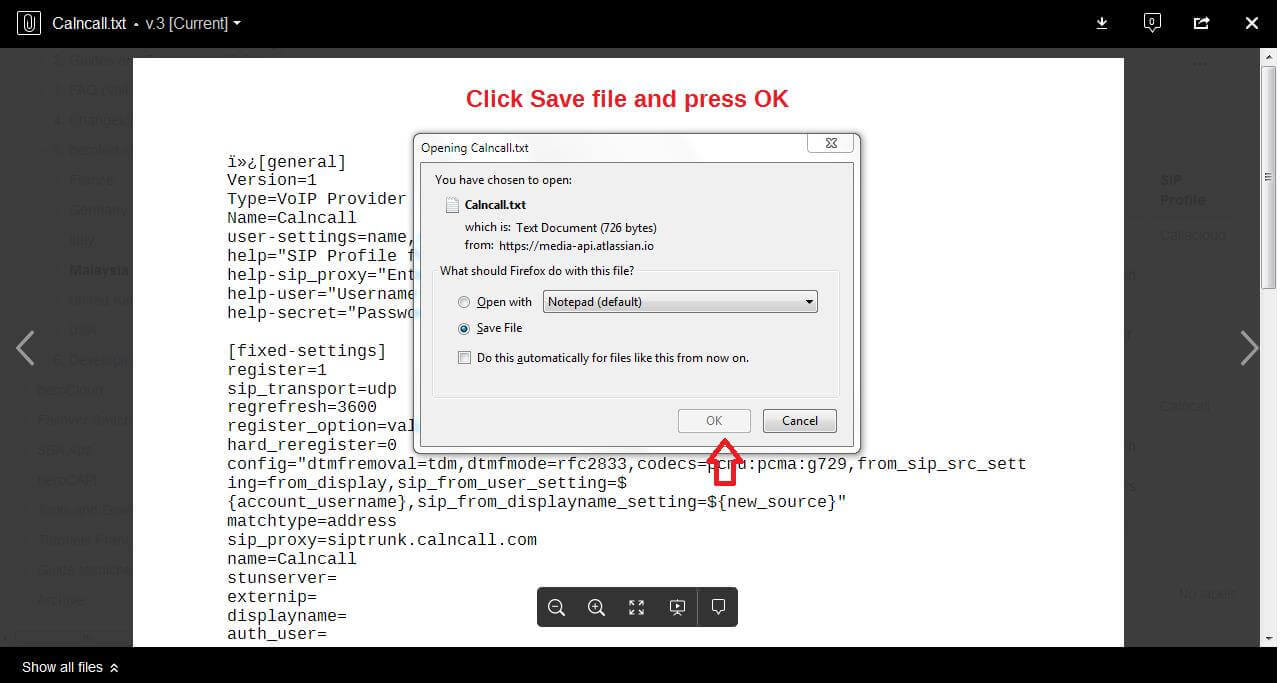

Step 2:

Step 3:

Step 4:

Please login into beroNet Gateway

Default IP: 10.0.0.2

Username: admin

Password: admin

For more details: https://www.calncall.com/wp-content/uploads/2018/07/Quick-Installation-Guide.pdf

Step 5: We must need firmware 16.x to upload the Trunk.Us SIP Profile.

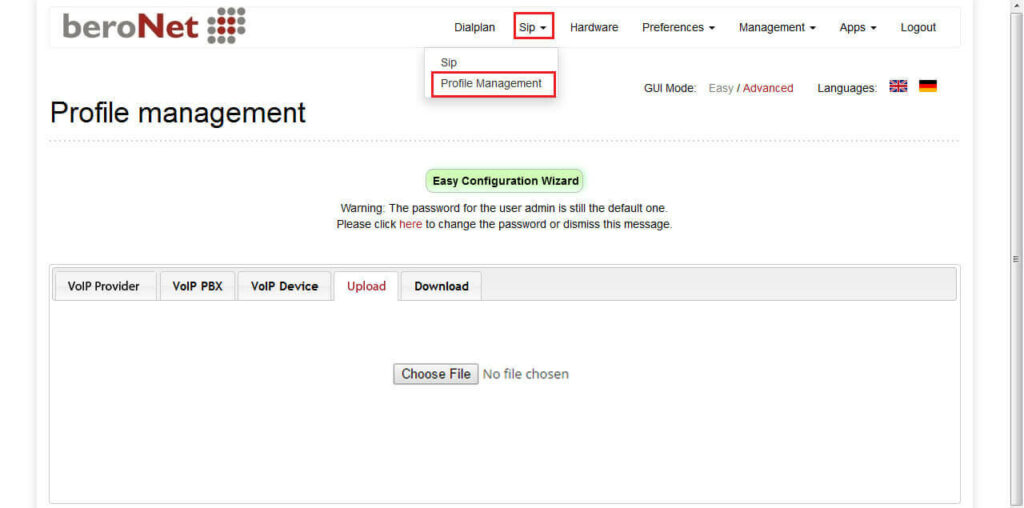

We have to upload the Trunk.Us SIP profile under SIP profile management as shown below.

Step 6: Now you can able to see the Trunk.Us SIP profile under VoIP provider as shown below.

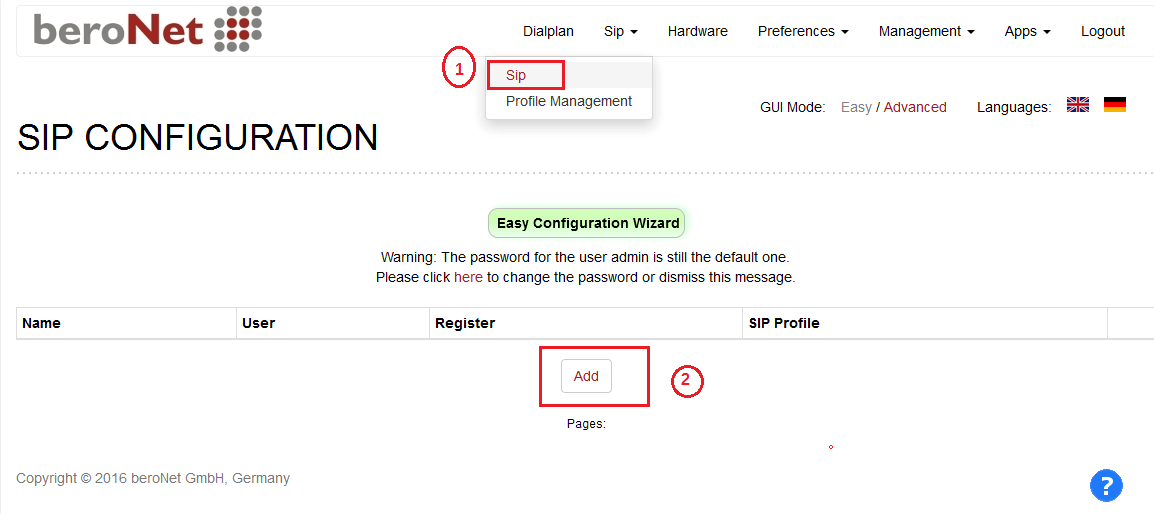

Step 7: Go to Sip –> Press Add button

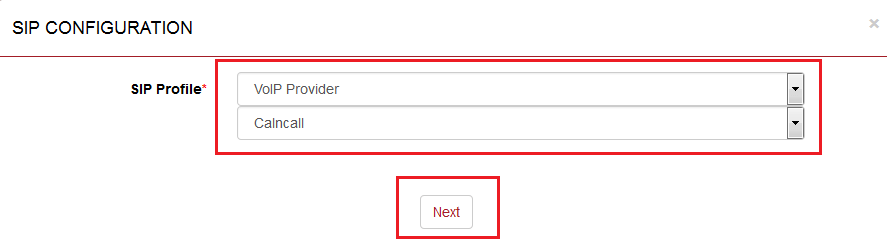

Step 8: Select SIP profile –> VoIP Provider –> Trunk.Us –> Press Next button

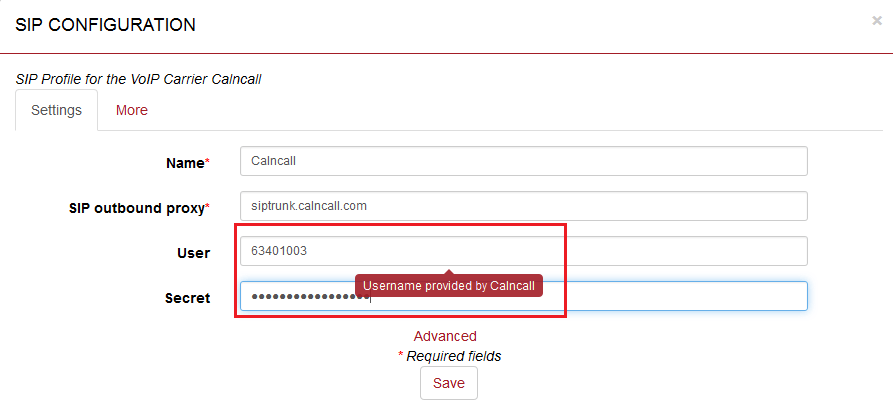

Step 9: To get Trunk.Us Account Details, please contact http://www.calncall.com/

Step 10:

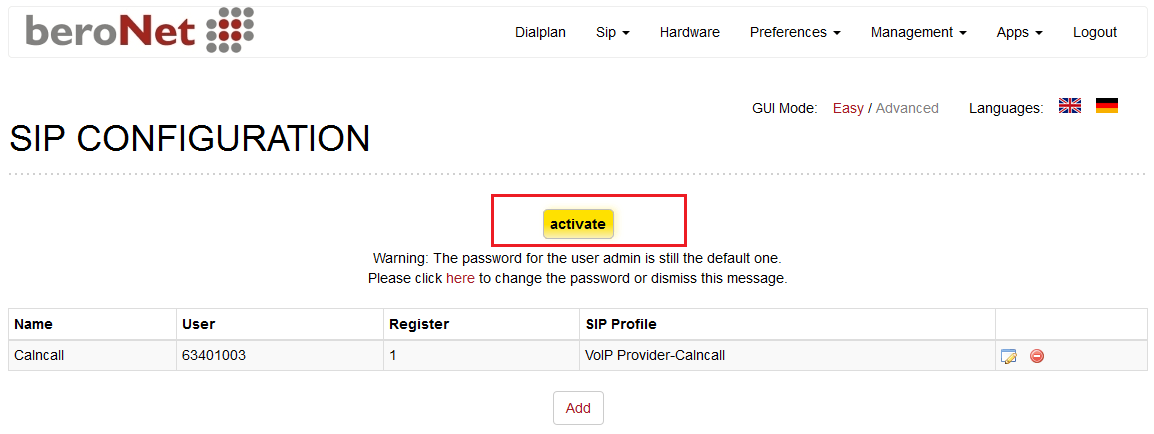

Step 11: To apply the settings click activate button.

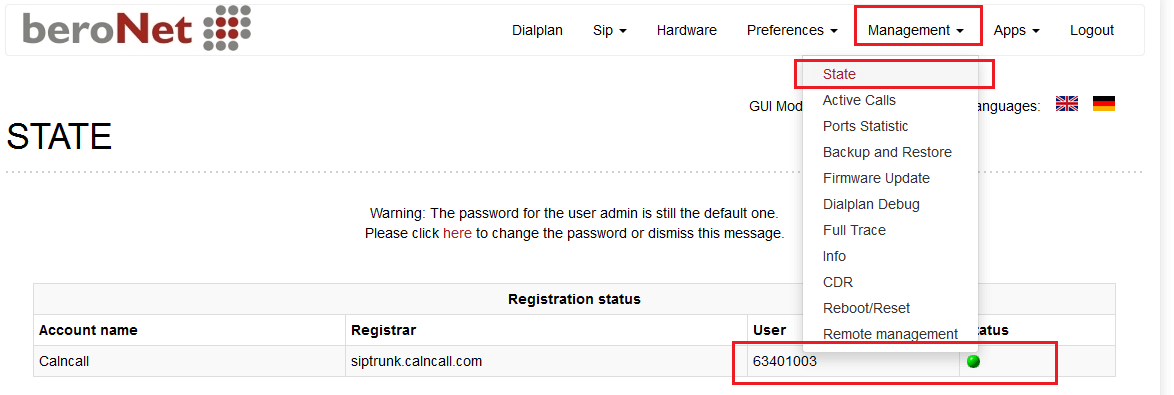

Step 12: To see the Trunk.Us SIP Trunk registration status Go to Management –> State

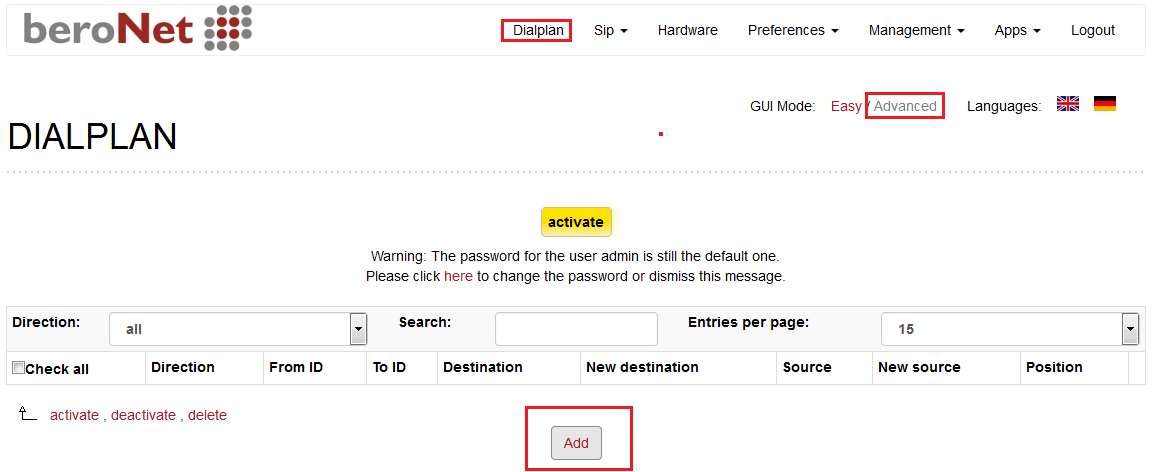

Step 13: In order to make / receive calls via Trunk.Us SIP Trunk as shown below figure.
